Tank Container Transportation
Tank Containers
T11, T14
Cryogenic Tank Container
T75
We offer the most favorable terms for the transportation of liquid and bulk cargo in tank containers worldwide. Our own fleet guarantees reliability and efficiency.
Tank Containers
A cost-effective and completely safe method for domestic and international transportation and storage of hazardous chemicals and flammable materials by road, rail, and sea.
(1)
A convenient solution for transporting liquid cargo.
We use it for transportation by road, rail, and sea/river transport, both domestically and internationally.
All our containers fully comply with the requirements of the International Convention for Safe Containers and the Customs Convention on Containers.

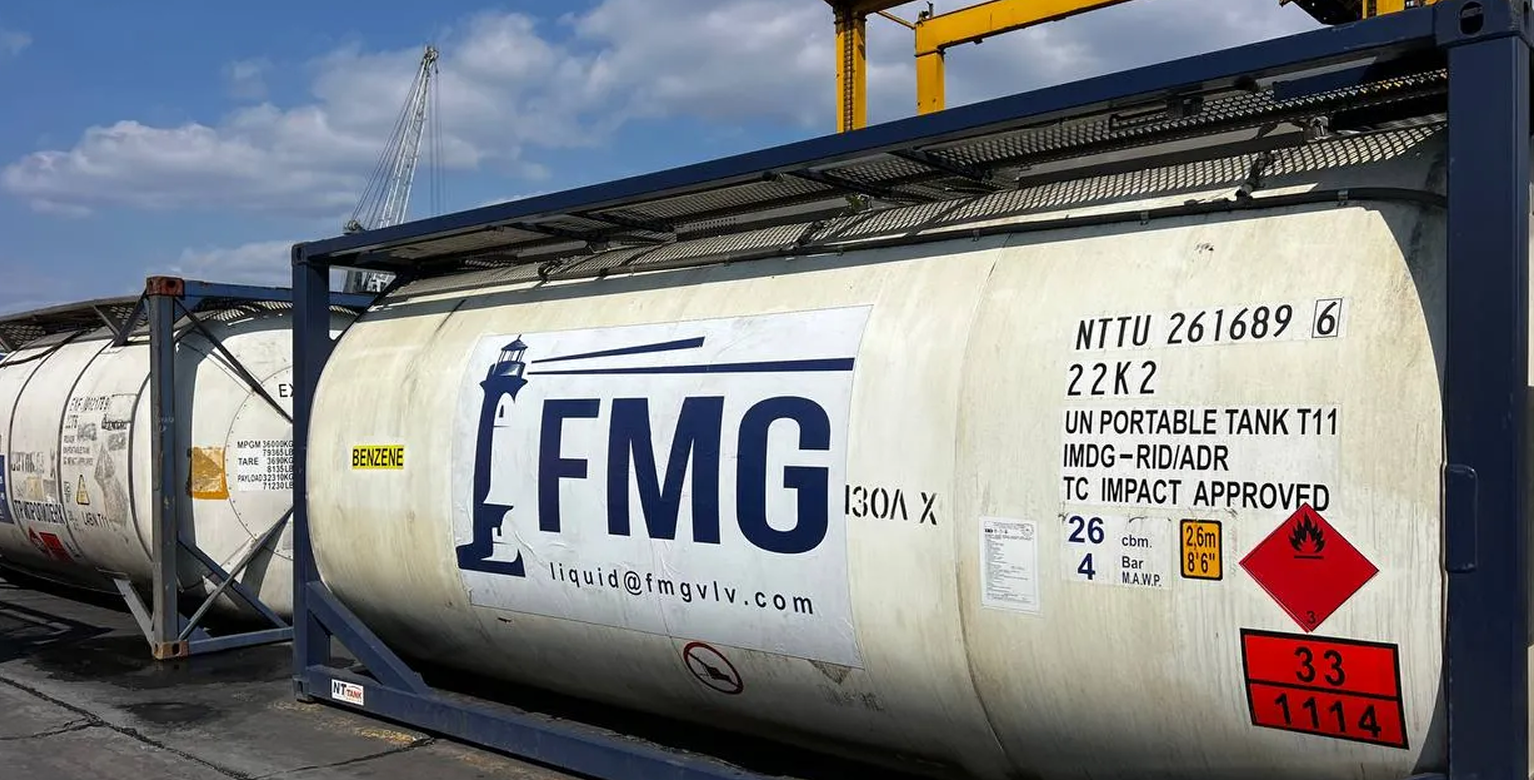

We use both our own and leased tank containers of the T11 and T14 models.
4 bar
Maximum tank pressure
3.2 t
Tank weight
-40° — +50°
Acceptable conditions for tank operation
5-6 mm
Stainless steel thickness
6 × 2.4 × 2.6 m
Dimensions (L × W × H)
23,000–26,000 L
Standard volume
(2)
What cargoes do we transport:
Chemical
Acids, alkalis, solvents, salts, and other reagents
Petroleum products
Oils, gasoline, diesel fuel, etc.
Petrochemicals
Benzene, styrene, fuel additives, etc.

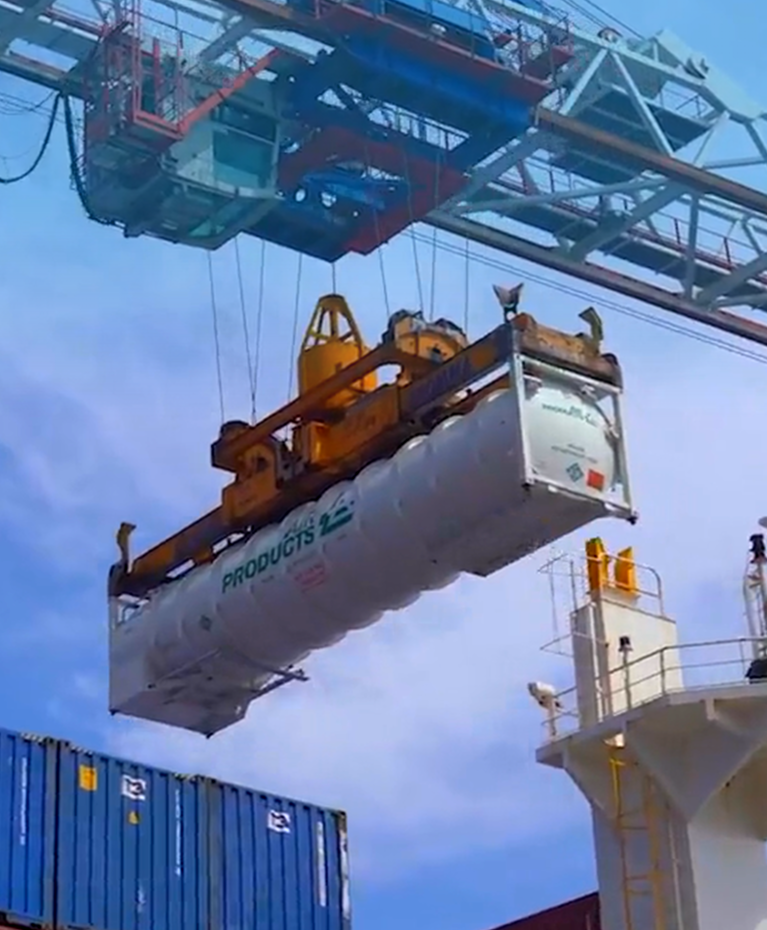

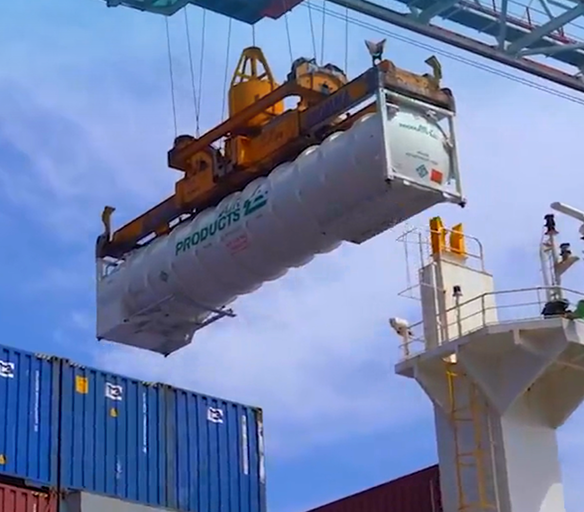

Cryogenic tank container
Using T75 containers is a convenient, reliable, and safe solution for transporting cryogenic liquids such as helium and nitrogen.
(1)
The nitrogen jacket maintains a stable temperature for a long time.

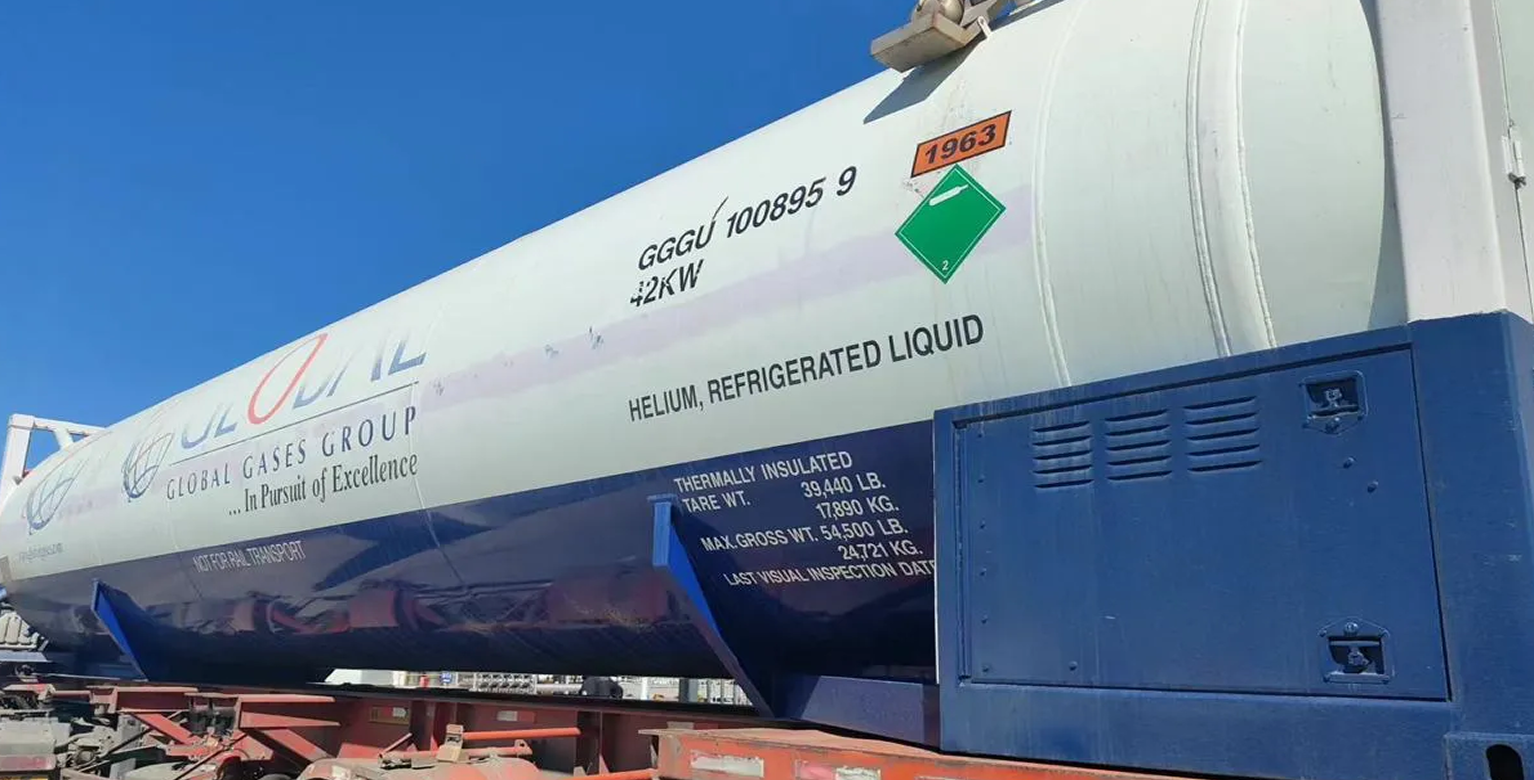

Mobile helium tank container with a capacity of 41 m³ and UN 1963 packaging code. Manufactured in accordance with ISO standards and the requirements of the International Convention for Safe Containers.
(2)
Two vessels: a primary vessel with helium and a secondary vessel with liquid nitrogen.
The nitrogen cools the container and gradually evaporates, safely dissipating into the atmosphere. High-quality vacuum insulation reliably protects the helium from heating during transit.
40 × 8 × 8.6 ft
Size
≈ 7490 kg
Total weight with front load
6 × 2.4 × 2.6 m
Dimensions (L × W × H)
23,000–26,000 liters
Standard Volume
At 90% Fill
≈ 41 m³
Maximum Volume
6.0 bar
Max. Working Pressure
5.7 bar
Nominal Working Pressure
≈ 4540 kg
Helium Weight
4 days
Shelf life variation with filling level of ±2%
At 98% filling
≈ 1.65 m³
Maximum Volume
0.7 bar
Max. Working Pressure
0.3 bar
Nominal Working Pressure
≈ 1300 kg
Nitrogen Weight
4 days
Shelf Life Difference with Filling Changes of ±2%
Liquid nitrogen consumption depends on external conditions (e.g. solar activity). Stainless steel vacuum insulation.
We will deliver your cargo
in the best way
